3D Modeling with AI

Hackathon Review 2025

Hackathon

The Goal

Learning prompt engineering through programmatic 3D modeling

  • Use Claude Code as the primary tool
  • Create OpenSCAD models through conversation
  • Learn by iterating and refining prompts
  • Build reusable component libraries
  • Complete a real-world project: Advent Calendar

Goal

The Journey Begins

First steps: Understanding the codebase

  • Analyzed repository structure
  • Created CLAUDE.md documentation
  • Established development workflows
  • Set up automation scripts

Journey

Building Reusable Components

Playground 002: Icon Library

  • WiFi symbol (cut-out & embossed)
  • Temperature indicator
  • Parametric, reusable modules
  • Learned about OpenSCAD’s use <file.scad> pattern

Icons

Key learning: Modularization and code organization

Expanding the Toolkit

Playground 003: Common Component Library

Created comprehensive 3D printing components:

  • Boxes & Mounting: Parametric boxes, mounting plates, PCB standoffs
  • Mechanical: Snap-fit joints, living hinges
  • Utility: Cable clips, ventilation grids, wall mounts

Components

Key learning: Designing for real-world 3D printing constraints

Automation & Workflows

Scripts & Tools:

  • generate_previews.sh - 6 standard views (perspective, top, front, left, wireframe, blueprint)
  • optimize_pngs.sh - Compress images for git (50-70% reduction)
  • Makefile for common tasks
  • Export scripts for STL generation

Automation

Key learning: Automation accelerates iteration

The Main Project

Advent Calendar with Snap-Fit Doors

Requirements:

  • 24 doors numbered 1-24
  • Uniform rectangular grid
  • Snap-fit hinges (no metal parts)
  • Embossed numbers in contrasting color
  • Randomized number positions

Calendar Start

Iteration 1: Initial Design

Started with complexity:

  • Random door sizes (small, medium, large)
  • Variable grid layout
  • Beveled numbers

Iteration 1

Lesson: Simpler is often better

Iteration 2: Fixing Orientation

Challenge: Box was horizontal, numbers not visible

Solution:

  • Changed box to vertical (400×510mm)
  • Made numbers embossed instead of recessed
  • Updated coordinate system (Z = vertical)

Iteration 2

Key learning: Clear specifications prevent misunderstandings

Iteration 3: Simplification

User feedback: “It looks ugly”

Changes:

  • Uniform 6×4 grid
  • All doors same size
  • Only randomize numbers (not sizes)
  • Added visible 2mm padding

Iteration 3

Key learning: User feedback drives design decisions

Iteration 4: Alignment & Clearances

Challenges:

  • Doors not aligned with openings
  • Missing door cutouts in box
  • Hinge holes not properly positioned

Solutions:

  • Box dimensions: 410×510mm (accounts for padding)
  • Door positioning: translate([x, -(door_thickness + 1), z])
  • Proper hinge slot placement

Iteration 4

Key learning: Coordinate systems matter!

Iteration 5: Number Orientation

Challenge: Numbers oriented horizontally (Y-axis) instead of vertically

Evolution:

// Wrong: Numbers horizontal
linear_extrude(height=number_depth)
    flat_number(day);

// Correct: Numbers vertical (Z-axis aligned)
rotate([90, 0, 0])
    linear_extrude(height=number_depth)
        flat_number(day);

Iteration 5

Key learning: Rotations transform coordinate planes

Wireframe Previews

Request: “Like pressing F11 in OpenSCAD”

Solution: Updated preview script

# Before: Edges with surfaces
--view=axes,scales,edges

# After: True wireframe (Thrown Together mode)
--preview=throwntogether

Wireframe

Key learning: Knowing the right tool flags

What I Learned

Prompt Engineering:

  • Be specific about dimensions, coordinates, and transformations
  • Provide technical details upfront
  • Use visual feedback to refine requirements

3D Modeling:

  • Coordinate systems (X, Y, Z) and rotations
  • Clearances and tolerances for 3D printing
  • Snap-fit mechanisms and hinge design

Development Workflow:

  • Iterate quickly with preview images
  • Automate repetitive tasks
  • Document as you go

Learning

Prompt Quality Evolution

Initial prompts: Vague and ambiguous

“please add a new folder in src…”

Improved prompts: Specific and measurable

“Create an advent calendar project in projects/advent_calendar/ with: 1) A rectangular box (410x510mm) with 24 door openings, 2) Doors in uniform 6x4 grid…”

Result: Faster iterations, fewer misunderstandings

Prompts

Key insight: Better prompts = Better results

The Final Result

Advent Calendar Features:

  • ✅ 410mm × 510mm vertical box
  • ✅ 24 uniform doors in 6×4 grid
  • ✅ Snap-fit hinges (3mm diameter, 0.2mm clearance)
  • ✅ Gold embossed numbers (vertically oriented)
  • ✅ 2mm visible padding between doors
  • ✅ Randomized number positions (seed-based)

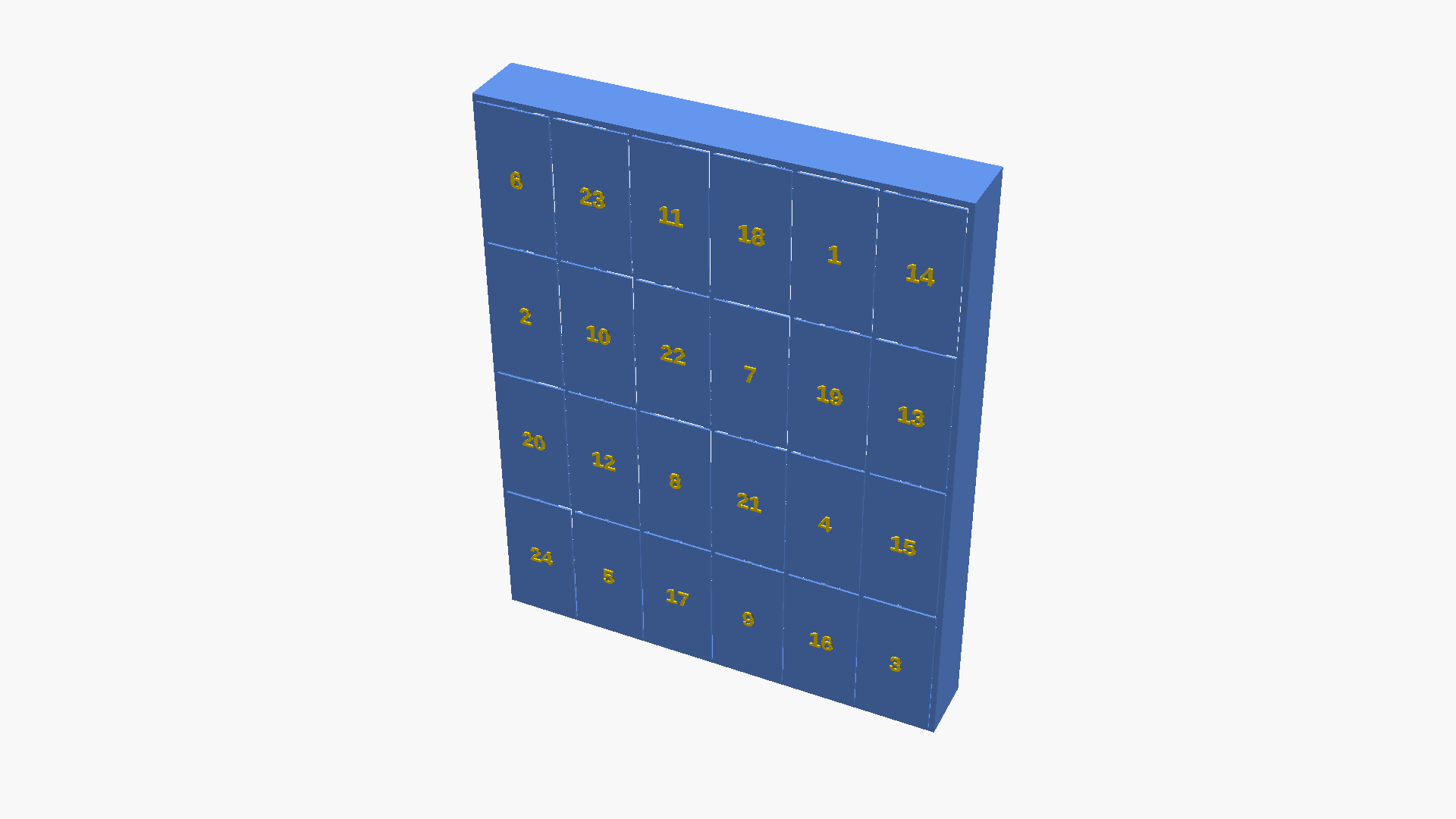

Final Calendar

Final Result: Multiple Views

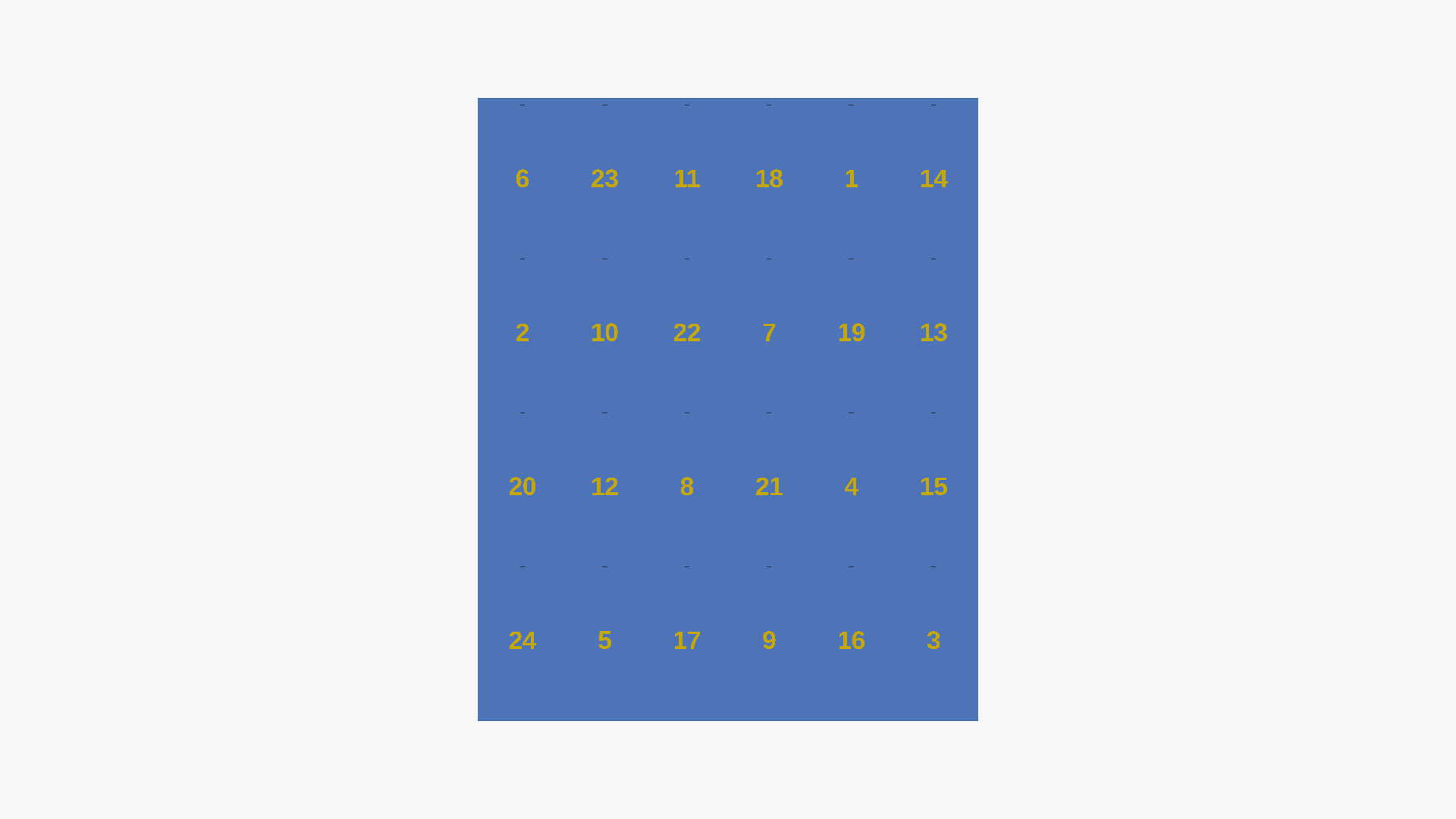

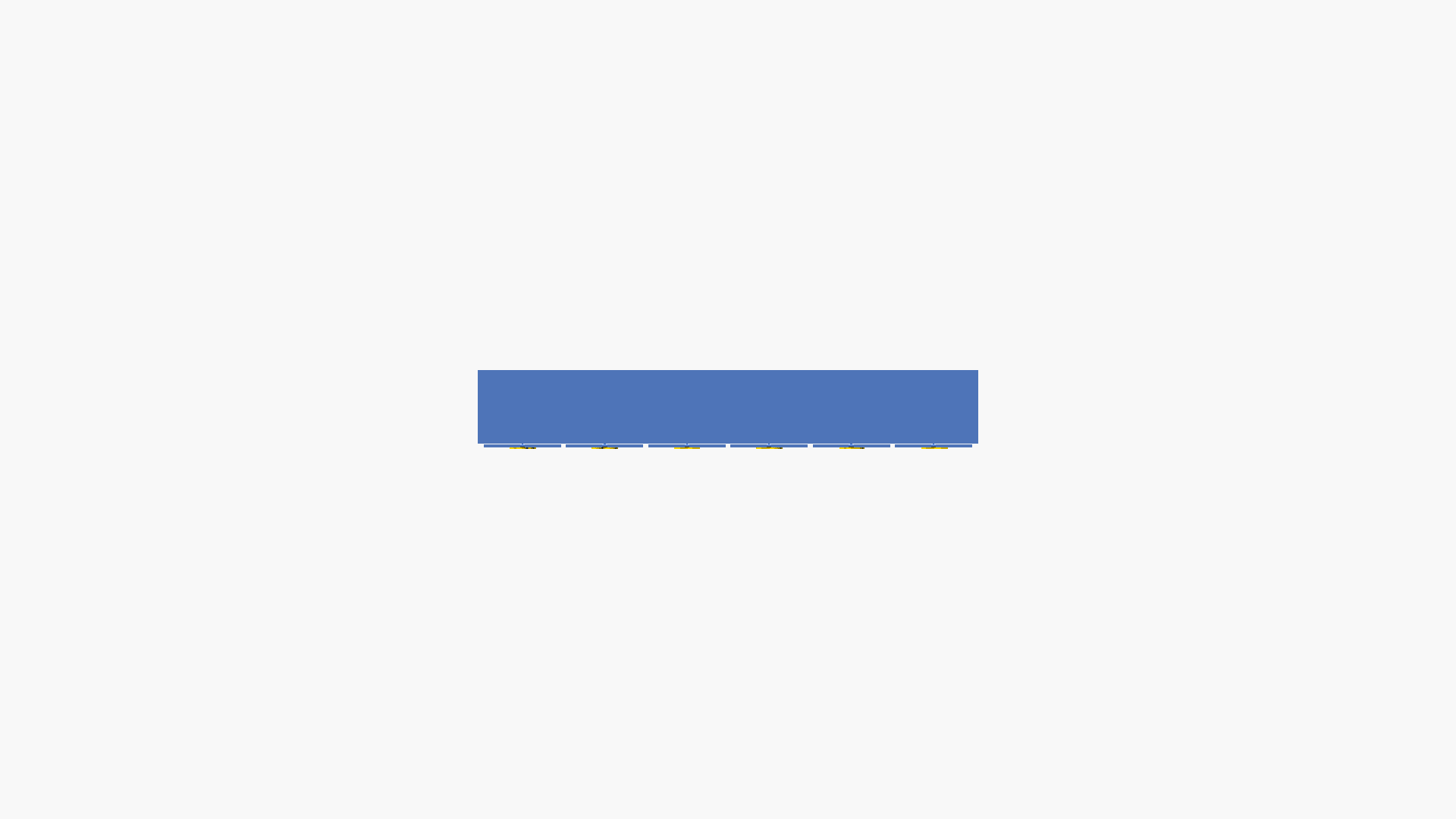

Front View

Front View

Top View

Top View

Wireframe

Wireframe

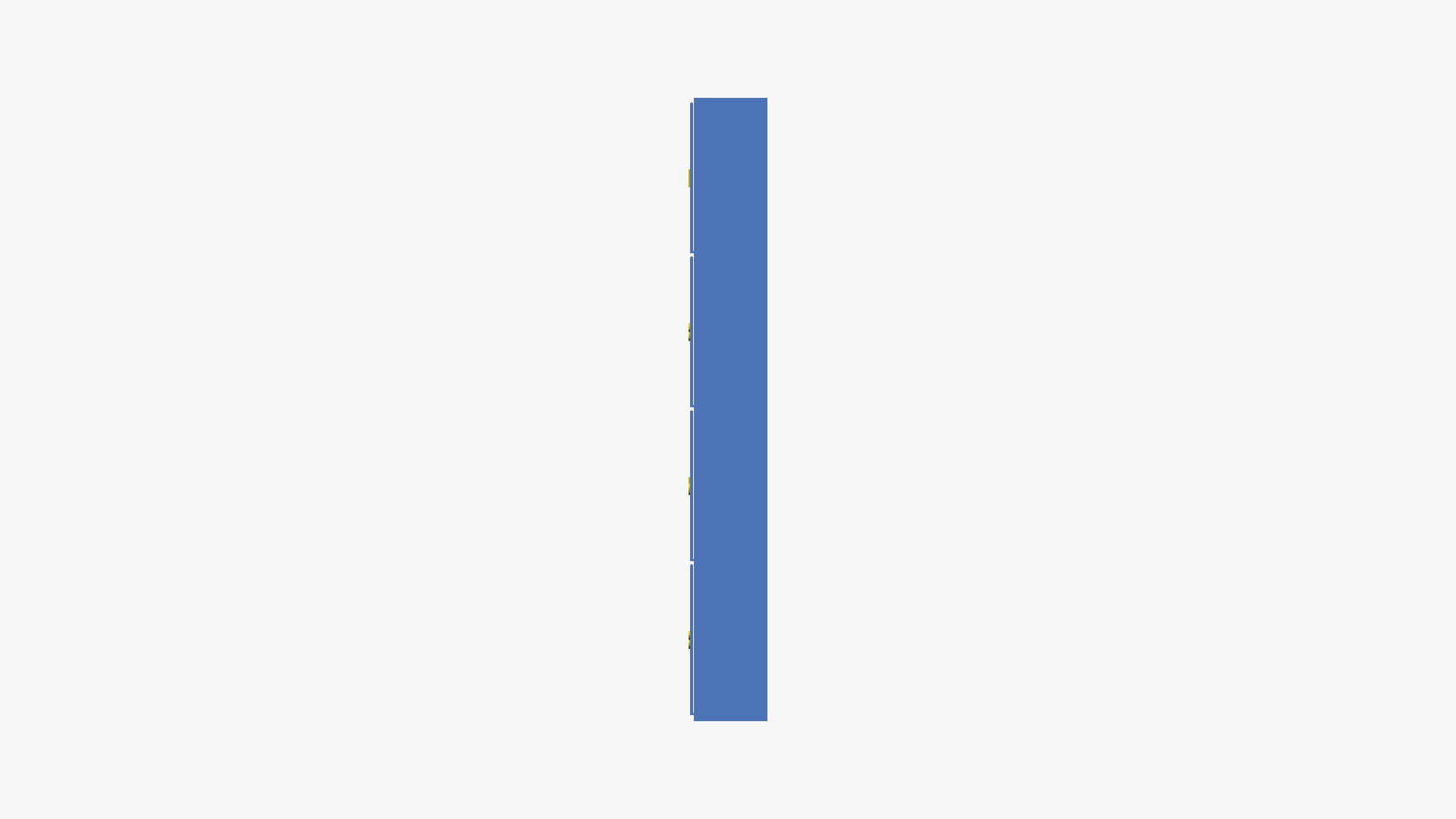

Left View

Left View

Repository Structure

Before: Flat, unorganized

src/
  001_box_with_lid/
  002_reusable_shapes/

After: Professional organization

lib/                    # Reusable components
projects/               # Build projects
playground/             # Experiments
scripts/                # Automation
docs/                   # Documentation
prompts/                # Prompt audit log

Structure

Key Takeaways

Technical Skills:

  • OpenSCAD programmatic modeling
  • 3D printing design constraints
  • Git repository organization
  • Bash scripting and automation

Soft Skills:

  • Iterative refinement through feedback
  • Clear communication with AI
  • Documentation best practices
  • Prompt engineering techniques

Mindset:

  • Start simple, add complexity as needed
  • Iterate quickly with visual feedback
  • Document learning for future reference

Takeaways

Thank You!

Resources:

  • Repository: hackathon-3dmodels/
  • Prompt Audit: prompts/claude.md
  • Documentation: CLAUDE.md
  • Components: lib/
  • Final Project: projects/advent_calendar/

Thank You

Question: What will you create with prompt engineering?
